1607814 | Phoenix Contact

Plug, 12 pole, crimp connection, screw locking, angled, 1607814

Order No.: 62P3875
EAN: 4046356268219
MPN:
1607814
RF-12P2N8AAC00
Series: RF

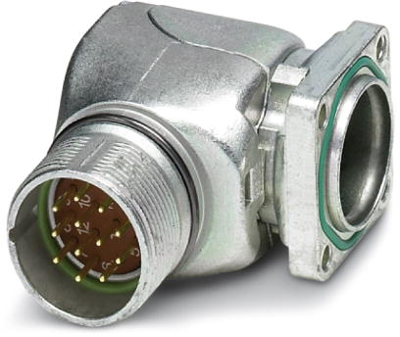

1607814 Phoenix Contact Other Circular Connectors Image 1
1607814 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.5731 € *
Available in 10 days: 192 pcs. - if ordered today
Total Price:
25.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
25.5731 €

Device connector, front mounting, 1607814, Phoenix Contact

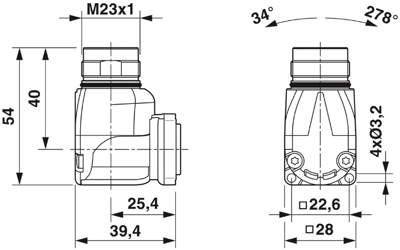

Panel connector, front panel, angled rotatable, screw locking, M23, pole count: 12, contact type: male, crimp termination, O-ring axial, 4x Ø 3.2, shielded: yes, flange size: 28 mm x 28 mm

Technical specifications
Contact connection crimp connection
Shell Material copper alloy
Type of locking screw locking
Pin number 12 pole
Assembly front mounting
Version plug
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
