1607802 | Phoenix Contact

Plug, 12 pole, crimp connection, screw locking, angled, 1607802

Order No.: 62P3866
EAN: 4046356267946
MPN:
1607802
RF-12P1N8AAC00
Series: RF

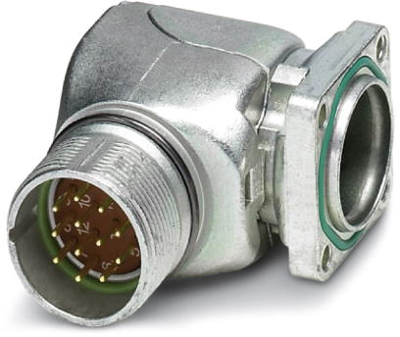

1607802 Phoenix Contact Other Circular Connectors Image 1
1607802 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.3704 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
26.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.3704 €

Device connector, front mounting, 1607802, Phoenix Contact

Panel connector, front panel, angled rotatable, screw locking, M23, pole count: 12, contact type: male, crimp termination, O-ring axial, 4x Ø 3.2, shielded: yes, flange size: 28 mm x 28 mm

Technical specifications
Type of locking screw locking
Assembly front mounting
Contact connection crimp connection
Pin number 12 pole
Version plug
Shell Material copper alloy
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
