1607728 | Phoenix Contact
Socket, 6 pole, crimp connection, screw locking, straight, 1607728
Order No.: 62P4645
EAN: 4046356274302
MPN:
1607728
ST-5ES1N8AWQ00S
Unit Price (€ / pc.)
13.1138 € *
Available: 0 pcs.
Leadtime: On Request **

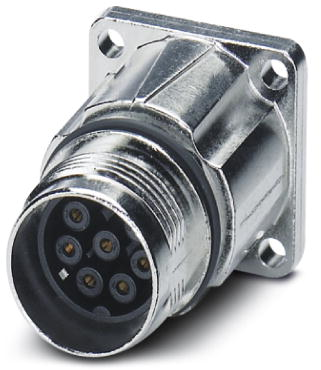

Device connector, front mounting, 1607728, Phoenix Contact

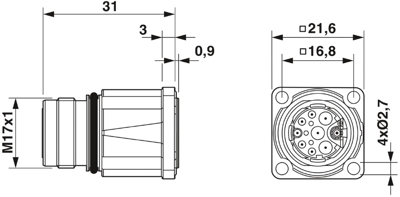

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, number of poles: 5+PE, contact type: female, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm
Technical specifications
| Version | socket | |
| Shell Material | copper alloy | |
| Contact connection | crimp connection | |
| Assembly | front mounting | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
