1607711 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, straight, 1607711

Order No.: 62P4618
EAN: 4046356274142
MPN:
1607711
ST-5EP1N8AWQ00S
Series: ST
1607711 Phoenix Contact Other Circular Connectors Image 1
1607711 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.2447 € *
Available in 10 days: 185 pcs. - if ordered today
Total Price:
13.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
13.2447 €

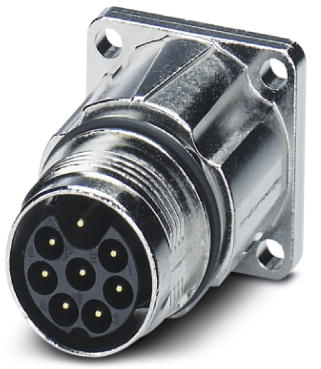

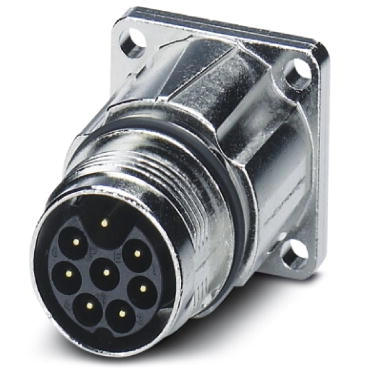

Device connector, front mounting, 1607711, Phoenix Contact

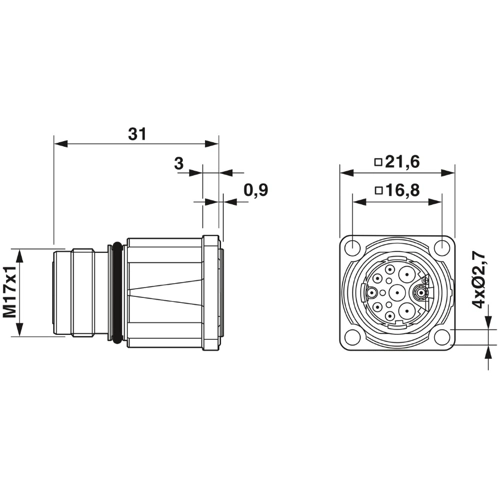

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 5+PE, contact type: male, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm

Technical specifications
Filter Property Value
Contact connection crimp connection
Assembly front mounting
Version plug
Shell Material copper alloy
Type of locking screw locking
Orientation straight
Pin number 6 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
