1607694 | Phoenix Contact
Socket, 3 pole, crimp connection, screw locking, straight, 1607694
Unit Price (€ / pc.)
12.5545 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

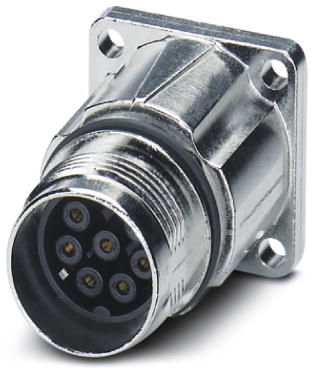

Device connector, front mounting, 1607694, Phoenix Contact

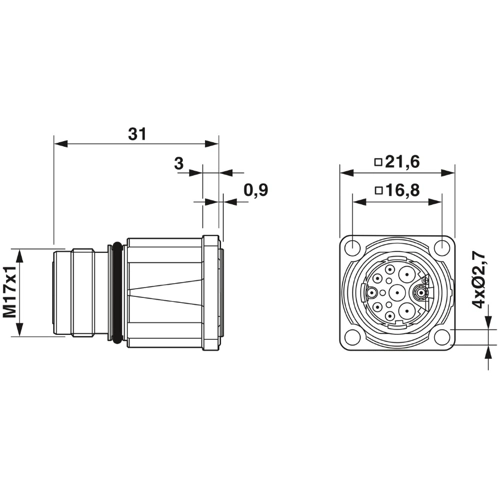

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, number of poles: 3+PE, contact type: female, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm
Technical specifications
| Version | Buchse | |
| Shell Material | Kupferlegierung | |
| Contact connection | Crimpanschluss | |
| Assembly | Frontmontage | |
| Orientation | gerade | |
| Pin number | 3-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
