1607675 | Phoenix Contact

Plug, 3 pole, crimp connection, screw locking, straight, 1607675

Order No.: 62P4564
EAN: 4046356273824
MPN:
1607675
ST-3EP1N8AWQ00S
Series: ST

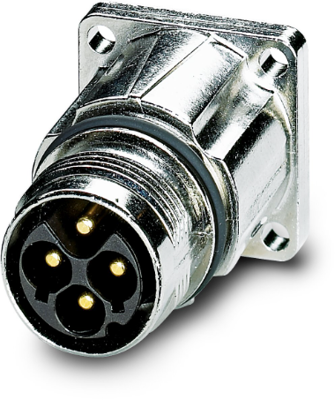

1607675 Phoenix Contact Other Circular Connectors Image 1
1607675 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.5545 € *
Available in 10 days: 108 pcs. - if ordered today
Total Price:
12.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.5545 €

Device connector, front mounting, 1607675, Phoenix Contact

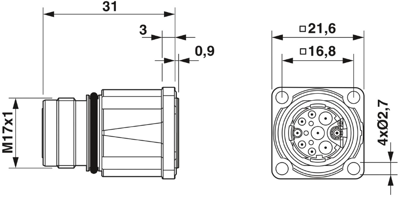

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 3+PE, contact type: male, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm

Technical specifications
Type of locking screw locking
contact surface nickel-plated/gold-plated
Orientation straight
Assembly front mounting
Version plug
Pin number 3 pole
Shell Material copper alloy
Contact connection crimp connection
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
