1607634 | Phoenix Contact

Plug, 17 pole, crimp connection, screw locking, straight, 1607634

Order No.: 62P4501
EAN: 4046356273459
MPN:
1607634
ST-17P1N8AW400S
Series: ST
1607634 Phoenix Contact Other Circular Connectors Image 1
1607634 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.6247 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
15.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
15.6247 €

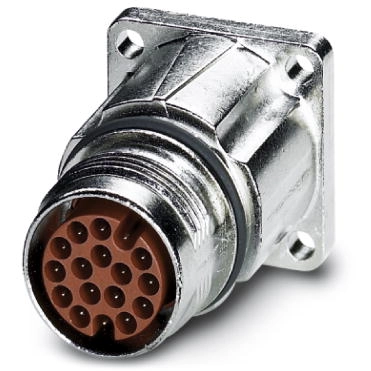

Device connector, front mounting, 1607634, Phoenix Contact

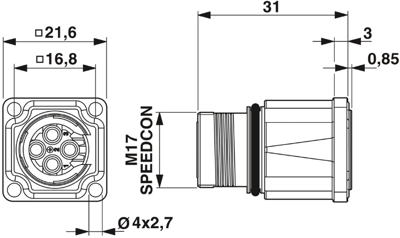

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, number of poles: 17, contact type: male, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm

Technical specifications
Orientation straight
Pin number 17 pole
Type of locking screw locking
Contact connection crimp connection
Assembly front mounting
Version plug
Shell Material copper alloy
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
