1607543 | Phoenix Contact

Socket, 8 pole, crimp connection, screw locking, angled, 1607543

Order No.: 62P4404
EAN: 4046356271578
MPN:
1607543
SM-7ES1N8AYW00
Series: SM

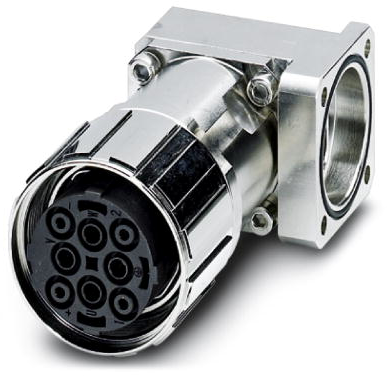

1607543 Phoenix Contact Other Circular Connectors Image 1
1607543 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
154.3073 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
154.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
154.3073 €

Device connector, front mounting, 1607543, Phoenix Contact

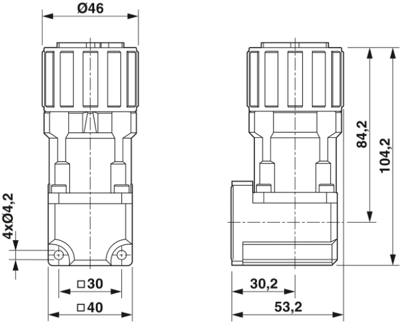

Panel connector, front panel with knurled nut, angled fixed, screw locking, M40, number of poles: 4+3+PE, contact type: female, crimp connection, O-ring axial, 4x Ø4.2, shielded: yes, flange dimension: 40 mm x 40 mm

Technical specifications
Type of locking screw locking
Assembly front mounting
Contact connection crimp connection
Pin number 8 pole
Version socket
Shell Material copper alloy
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
