1607429 | Phoenix Contact

Socket, 8 pole, crimp connection, screw locking, angled, 1607429

Order No.: 62P4181
EAN: 4046356271417
MPN:
1607429
SF-7ES1N8AYW00
Series: SF

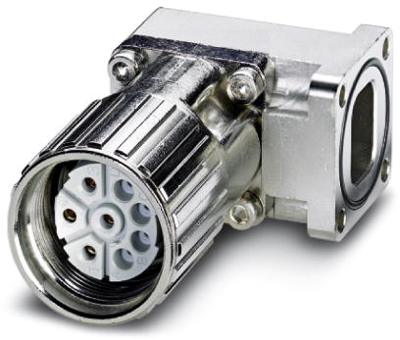

1607429 Phoenix Contact Other Circular Connectors Image 1
1607429 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
146.132 € *
Available in 10 days: 5 pcs. - if ordered today
Total Price:
146.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
146.132 €

Device connector, front mounting, 1607429, Phoenix Contact

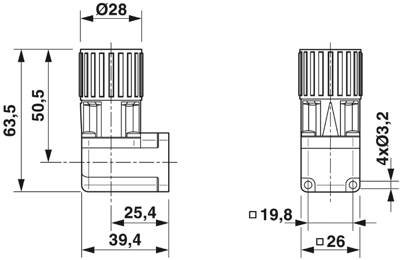

Panel connector, front panel with knurled nut, angled fixed, screw locking, M23, number of poles: 4+3+PE, contact type: female, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange size: 26 mm x 26 mm

Technical specifications
Filter Property Value
Pin number 8 pole
Contact connection crimp connection
Assembly front mounting
Version socket
Shell Material copper alloy
Orientation angled
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
