1607354 | Phoenix Contact
Socket, 17 pole, crimp connection, screw locking, angled, 1607354
Unit Price (€ / pc.)
18.5878 € *
Standard delivery time from the manufacturer is: On Request

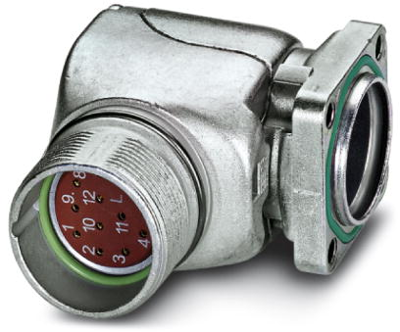

Device connector, front mounting, 1607354, Phoenix Contact

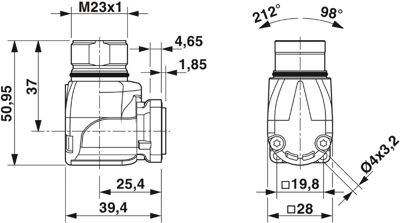

Panel connector, front panel, angled rotatable, screw locking, M23, pole count: 17, contact type: female, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 26 mm x 26 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Shell Material | copper alloy | |
| Contact connection | crimp connection | |
| Pin number | 17 pole | |
| Type of locking | screw locking | |
| Version | socket | |
| Assembly | front mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
