1607280 | Phoenix Contact

Socket, 12 pole, crimp connection, screw locking, angled, 1607280

Order No.: 62P3889
EAN: 4046356268493
MPN:
1607280
RF-12S1N8AAD00
Series: RF
Phoenix Contact

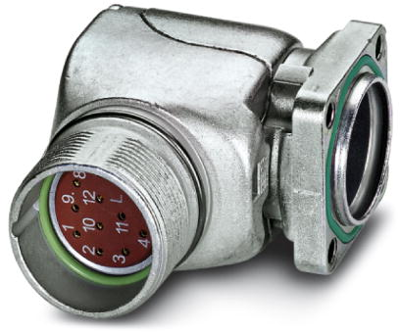

1607280 Phoenix Contact Other Circular Connectors Image 1

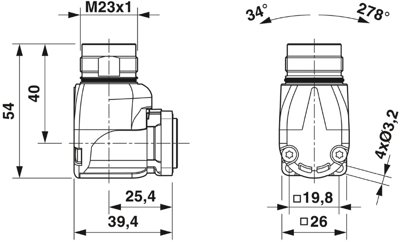

1607280 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.7282 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
24.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
24.7282 €

Device connector, front mounting, 1607280, Phoenix Contact

Panel connector, front panel, angled rotatable, screw locking, M23, pole count: 12, contact type: female, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 26 mm x 26 mm

Technical specifications
Version socket
Shell Material copper alloy
Contact connection crimp connection
Assembly front mounting
Orientation angled
Pin number 12 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
