1607279 | Phoenix Contact

Socket, 12 pole, crimp connection, screw locking, angled, 1607279

Order No.: 62P3887
EAN: 4046356268479
MPN:
1607279
RF-12S1N8AA200
Series: RF
Phoenix Contact

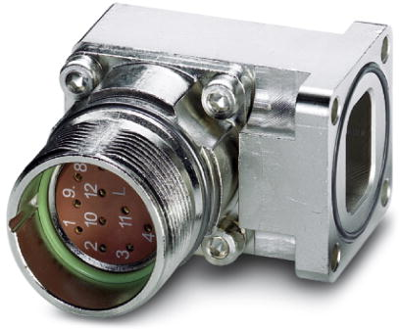

1607279 Phoenix Contact Other Circular Connectors Image 1
1607279 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
76.9811 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
76.98 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
76.9811 €

Device connector, front mounting, 1607279, Phoenix Contact

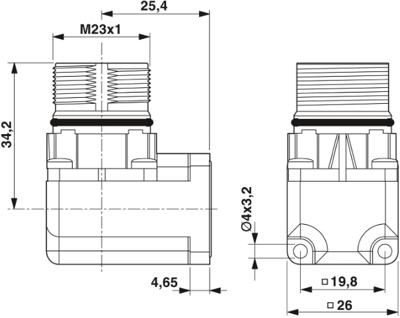

Panel connector, front panel, angled fixed, screw locking, M23, pole count: 12, contact type: female, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 26 mm x 26 mm

Technical specifications
Version socket
Shell Material copper alloy
Contact connection crimp connection
Assembly front mounting
Orientation angled
Pin number 12 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
