1607233 | Phoenix Contact

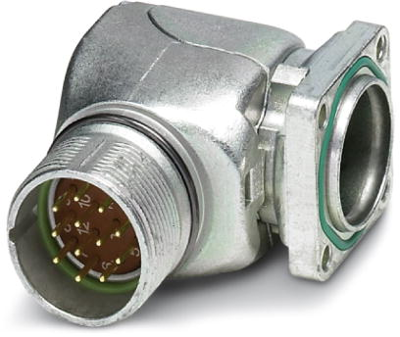

Plug, 12 pole, crimp connection, screw locking, angled, 1607233
Unit Price (€ / pc.)
19.0876 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
19.09 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0876 €
10 pcs.
17.7429 €
25 pcs.
16.1483 €
50 pcs.
14.5299 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector, front mounting, 1607233, Phoenix Contact

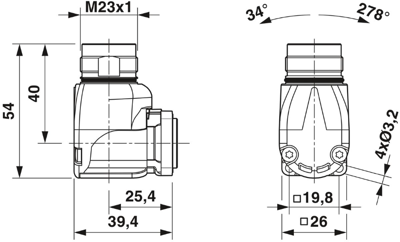

Panel connector, front panel, angled rotatable, screw locking, M23, pole count: 12, contact type: male, crimp termination, O-ring axial, 4x Ø 3.2, shielded: yes, flange size: 26 mm x 26 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | copper alloy | |
| Assembly | front mounting | |
| Orientation | angled | |
| Version | plug | |
| Type of locking | screw locking | |
| Contact connection | crimp connection | |
| Pin number | 12 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
