1607036 | Phoenix Contact
Plug, 6 pole, crimp connection, screw locking, angled, 1607036
Unit Price (€ / pc.)
22.8837 € *
Standard delivery time from the manufacturer is: 5 Weeks

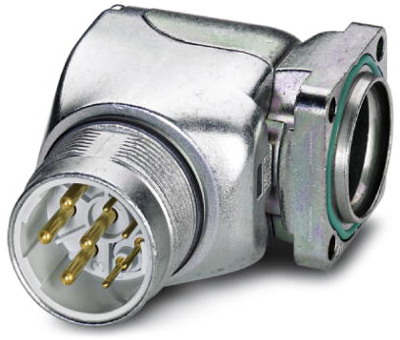

Device connector, front mounting, 1607036, Phoenix Contact

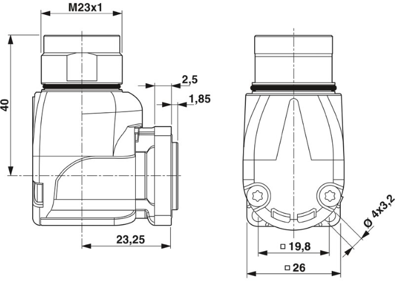

Panel connector, front panel, angled fixed, screw locking, M23, no. of poles: 5+PE, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange size: 26 mm x 26 mm, cable diameter range: 0 mm...0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| Assembly | front mounting | |
| Shell Material | copper alloy | |
| Orientation | angled | |
| Pin number | 6 pole | |
| Version | plug | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
