1605589 | Phoenix Contact

Plug, 8 pole, crimp connection, screw locking, straight, 1605589

Order No.: 62P4156
EAN: 4046356182218
MPN:
1605589
SF-7EP1N8AWA00
Series: SF
1605589 Phoenix Contact Other Circular Connectors Image 1
1605589 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.8702 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
26.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.8702 €

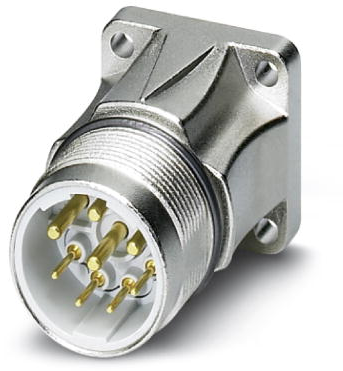

Device connector, front mounting, 1605589, Phoenix Contact

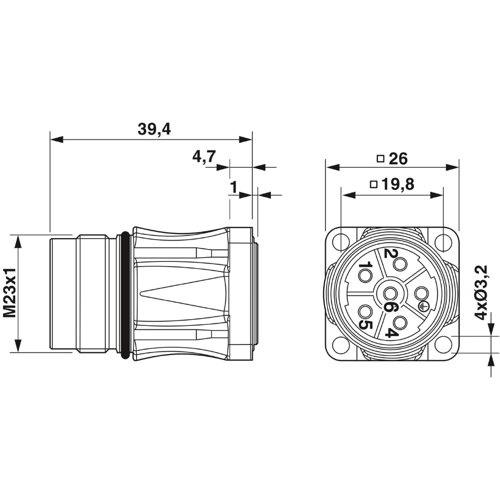

Panel connector, front panel, straight, for standard and SPEEDCON locking, M23, number of poles: 4+3+PE, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange size: 26 mm x 26 mm, cable diameter range: 0 mm...0 mm, compatible to mating connectors with SPEEDCON or M23 standard knurled nut

Technical specifications
Filter Property Value
Contact connection crimp connection
Assembly front mounting
Version plug
Shell Material copper alloy
Type of locking screw locking
Orientation straight
Pin number 8 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
