1605586 | Phoenix Contact

Plug, 8 pole, crimp connection, screw locking, angled, 1605586

Order No.: 62P4143
EAN: 4046356182201
MPN:
1605586
SF-7EP1N8AAD00
Series: SF

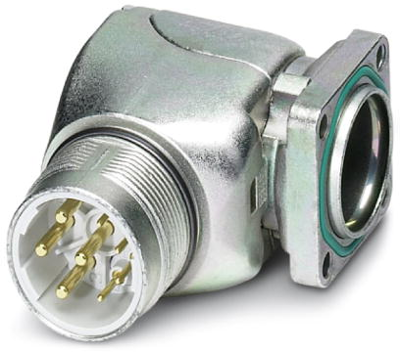

1605586 Phoenix Contact Other Circular Connectors Image 1
1605586 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
35.3192 € *
Available in 10 days: 49 pcs. - if ordered today
Total Price:
35.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
35.3192 €

Device connector, front mounting, 1605586, Phoenix Contact

Panel connector, front panel, angled rotatable, for standard and SPEEDCON locking, M23, number of poles: 4+3+PE, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 26 mm x 26 mm, cable diameter range: 0 mm...0 mm

Technical specifications
Filter Property Value
Pin number 8 pole
Contact connection crimp connection
Assembly front mounting
Version plug
Shell Material copper alloy
Orientation angled
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
