1605515 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, angled, 1605515

Order No.: 62P4084
EAN: 4046356253277
MPN:
1605515
SF-5EP1N8AAK00
Series: SF

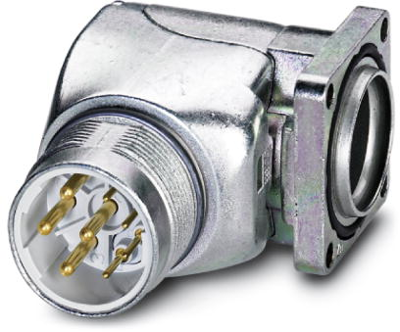

1605515 Phoenix Contact Other Circular Connectors Image 1
1605515 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.4787 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
23.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.4787 €

Device connector, front mounting, 1605515, Phoenix Contact

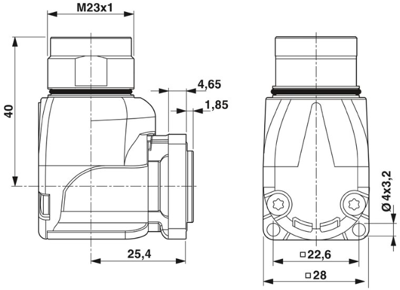

Panel connector, front panel, angled fixed, enlarged flange dimension, screw locking, M23, number of poles: 5+PE, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 28 mm x 28 mm, cable diameter range: 0 mm...0 mm

Technical specifications
Filter Property Value
Contact connection crimp connection
Orientation angled
Assembly front mounting
Version plug
Shell Material copper alloy
Type of locking screw locking
Pin number 6 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
