1605512 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, angled, 1605512

Order No.: 62P4081
EAN: 4046356182157
MPN:
1605512
SF-5EP1N8AAD00
Series: SF

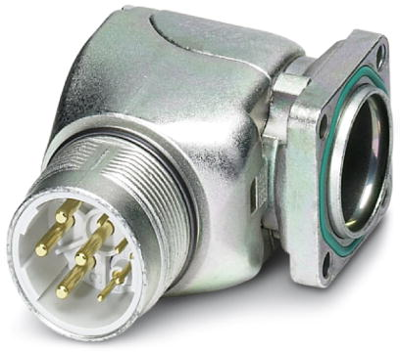

1605512 Phoenix Contact Other Circular Connectors Image 1
1605512 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
33.5342 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
33.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.5342 €

Device connector, front mounting, 1605512, Phoenix Contact

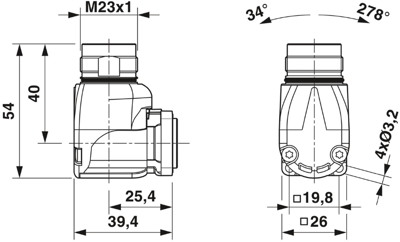

Panel connector, front panel, angled rotatable, for standard and SPEEDCON locking, M23, number of poles: 5+PE, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 26 mm x 26 mm

Technical specifications
Filter Property Value
Orientation angled
Assembly front mounting
Pin number 6 pole
Version plug
Contact connection crimp connection
Type of locking screw locking
Shell Material copper alloy
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
