1582575 | Phoenix Contact

Panel feed through, 4 pole + PE, IDC connection, screw locking, straight, 1582575

Order No.: 62P3668
EAN: 4046356662062
MPN:
1582575
QPD W 4PE2,5 9-16 M25 FC GY
Series: QPD

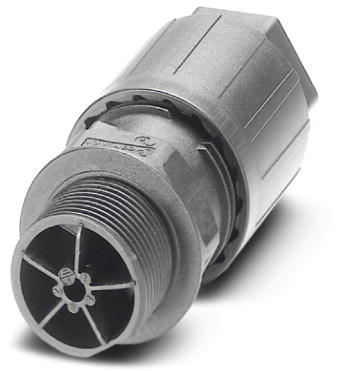

1582575 Phoenix Contact Other Circular Connectors Image 1

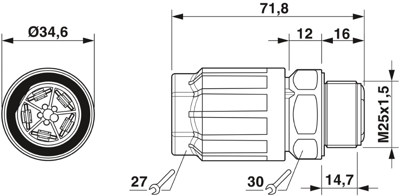

1582575 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.0618 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
24.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
24.0618 €

Panel feed-through, 1582575, Phoenix Contact

Panel feed-through, QUICKON connection, number of positions: 4+PE, 1-2.5 mm², 690 V, 20 A, gray, with QUICKON nut, external cable diameter: 9-16 mm, assembly thread: M25, Spade connection (For slip-on sleeves according to DIN 46247-2)

Technical specifications
Version flat plug connection 4.8 x 0.8 mm
Cable cross-section 1.0-2.5 mm²
Pin number 4 pole + PE
Orientation straight
Contact connection IDC connection
Type of locking screw locking
Cable diameter 9 to 16 mm
Assembly front wall mounting M21
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
