1571364 | Phoenix Contact

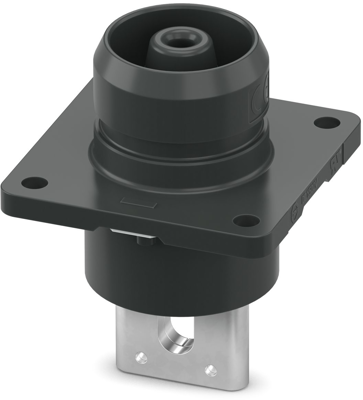

Plug, 1 pole, threaded connection, straight, 1571364
Unit Price (€ / pc.)
23.4430 € *
Available in 10 days: 30 pcs. - if ordered today
Total Price:
23.44 € *
Price list
Quantity
Price per unit*
1 pcs.
23.4430 €
10 pcs.
21.5390 €
25 pcs.
19.6350 €
50 pcs.
17.8500 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector, 1571364, Phoenix Contact
Connector, color: black, number of positions: 1, min. conductor cross section: 95 mm², max. conductor cross section: 120 mm², rated voltage: 1500, rated current: 350 A, Connection method: Thread connection, Contact connection type: Pin.
Features
- Patented design, with 3 proofs and one rotation
- Safety lock
- 360° free rotation and flexible wiring
- Foolproof mechanism installed
- Touch-proof
- Mismatching and short circuit proof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Cable cross-section | 95-120 mm² | |
| Contact connection | threaded connection | |
| Shell Material | PA | |
| Pin number | 1 pole | |
| contact surface | nickel-plated/silver-plated | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85359000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
