1571083 | Phoenix Contact

Socket, 1 pole, crimp connection, angled, 1571083

Order No.: 64P3194
EAN: 4067923058279
MPN:
1571083
1571083 Phoenix Contact Other Circular Connectors

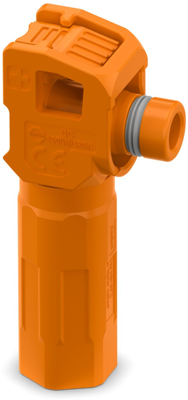

Image may differ
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3808 €
10 pcs.
0.3213 €
50 pcs.
0.2761 €
100 pcs.
0.2356 €
500 pcs.
0.1761 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector, 1571083, Phoenix Contact

Connector, color: orange, number of positions: 1, min. conductor cross section: 16 mm², max. conductor cross section: 25 mm², rated voltage: 1500, rated current: 120 A, Connection method: Crimp, Contact connection type: Socket, min. cable diameter: 8.4 mm, max. cable diameter: 12.4 mm.

Features

  • Patented design, with 3 proofs and one rotation
  • Safety lock
  • 360° free rotation and flexible wiring
  • Foolproof mechanism installed
  • Touch-proof
  • Mismatching and short circuit proof
Technical specifications
Filter Property Value
Contact connection crimp connection
Cable cross-section 16-25 mm²
Cable diameter 8.4 to 12.4 mm
Pin number 1 pole
Version socket
Orientation angled
Shell Material PA
Logistics
Property Value
Country of origin CN
Customs tariff number 85359000
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
