1467456 | Phoenix Contact

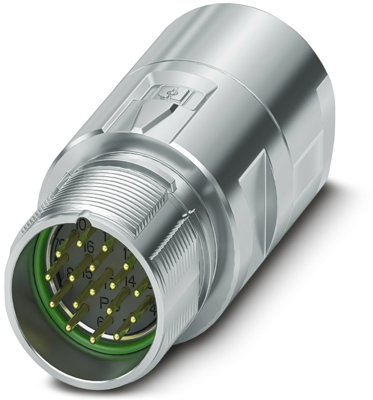

Plug, 17 pole, solder connection, standard/ONECLICK quick locking system, straight, 1467456
Unit Price (€ / pc.)
22.0150 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
22.02 € *
Price list
Quantity
Price per unit*
1 pcs.
22.0150 €
10 pcs.
20.6346 €
25 pcs.
19.4208 €
50 pcs.
18.3498 €
*incl. VAT plus shipping costs
Subject to prior sale
Coupler connector, 1467456, Phoenix Contact
M23, Coupler connector, series: M23 PRO, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Solder connection, cable diameter range: 4 mm ... 8.5 mm, coding: N.
Features
- Solutions with cross-manufacturer compatibility for standard and fast locking systems
- Modern, consistent design for highly convenient operation
- Easy, cost-effective cable assembly: uniform shielding of M17 to M40
Technical specifications
| Pin number | 17 pole | |
| Type of locking | standard/ONECLICK quick locking system | |
| Shell Material | zinc die casting | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Version | plug | |
| Cable diameter | 4 to 8.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
