1461454 | Phoenix Contact

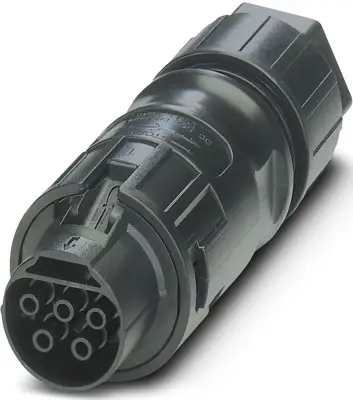

Jack, 5 pole, screw connection, straight, 1461454

Order No.: 64P2180
EAN: 4063151853501
MPN:
1461454
PRC 5-FC-FS6 SET 25
Series: PRC
1461454 Phoenix Contact Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
12.7449 € *
Available in 10 days: 25 pcs. - if ordered today
Total Price:
318.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
12.7449 €

Coupler connector, 1461454, Phoenix Contact

Coupler connector, Range of articles: PRC 35, design: Release with tool or by hand (see accessories), housing material: PPE, color: black, number of positions: 5, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Contact connection type: Socket, min. cable diameter: 8 mm, max. cable diameter: 21 mm.

Features

  • Up to 75% smaller in size than industrial connectors with the same rating
  • Locking mechanism can be unlocked manually or using a tool
  • Suitable for applications in atmospheres containing salt and in direct sunlight
  • Ideal for indoor and outdoor use due to weatherproof materials
Technical specifications
Filter Property Value
Pin number 5 pole
Contact connection screw connection
Assembly cable assembly
Version jack
Cable diameter 8 to 21 mm
Cable cross-section 1.5-6 mm²
Shell Material PPE
Orientation straight
Additional parts equipped
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
