1461453 | Phoenix Contact

Plug, 5 pole, screw connection, straight, 1461453

Order No.: 64P2178
EAN: 4063151853341
MPN:
1461453
PRC 5-FC-MS6 SET 25
Series: PRC
1461453 Phoenix Contact Other Circular Connectors

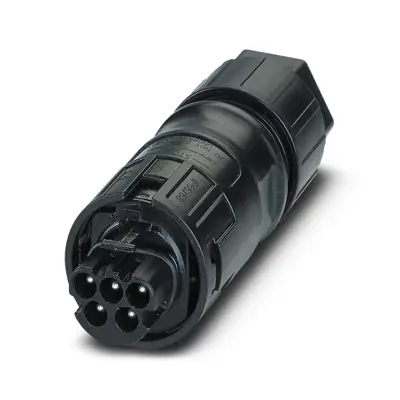

Image may differ
Unit Price (€ / pc.)
12.4593 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
311.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
12.4593 €

Connector, 1461453, Phoenix Contact

Connector, Range of articles: PRC 35, design: Straight, housing material: PPE, color: black, number of positions: 5, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Contact connection type: Pin, min. cable diameter: 8 mm, max. cable diameter: 21 mm, Ensures touch protection.

Features

  • Up to 75% smaller in size than industrial connectors with the same rating
  • Locking mechanism can be unlocked manually or using a tool
  • Suitable for applications in atmospheres containing salt and in direct sunlight
  • Ideal for indoor and outdoor use due to weatherproof materials
Technical specifications
Filter Property Value
Contact connection screw connection
Orientation straight
Cable diameter 8 to 21 mm
Assembly cable assembly
Version plug
Shell Material PPE
Additional parts equipped
Cable cross-section 1.5-6 mm²
Pin number 5 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
