1424011 | Phoenix Contact

Panel feed through, 4 pole, IDC connection, screw locking, straight, 1424011

Order No.: 65P1627
EAN: 4055626366265
MPN:
1424011
QPD W4X2,5 M25 DT GY
Series: QPD

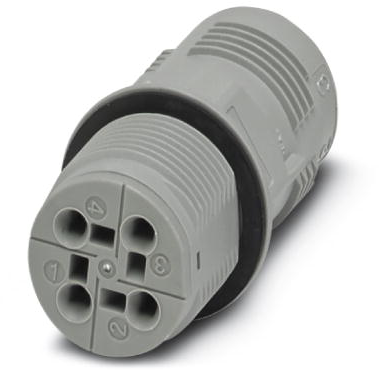

1424011 Phoenix Contact Other Circular Connectors Image 1

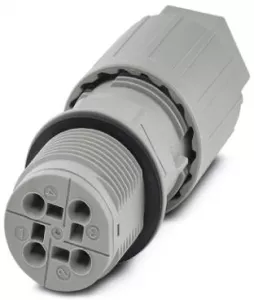

1424011 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.9412 € *
Available in 10 days: 78 pcs. - if ordered today
Total Price:
27.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
27.9412 €

Panel feed-through, 1424011, Phoenix Contact

Panel feed-through, QUICKON connection, 1-2.5 mm², 690 V, 20 A, gray, without QUICKON nut, assembly thread: M25, Push-in connection, 2.5 mm²

Features

  • Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
  • Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Technical specifications
contact surface silver-plated
Orientation straight
Type of locking screw locking
Shell Material PA
Cable cross-section 1.0-2.5 mm²
Pin number 4 pole
Assembly front wall mounting M32
Version pin
Additional parts equipped
Contact connection IDC connection
Logistics
Customs tariff number 85366990
Country of origin PL
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
