1423987 | Phoenix Contact

Connector, 3 pole + PE, IDC connection, screw locking, straight, 1423987

Order No.: 65P1287
EAN: 4055626366043
MPN:
1423987
QPD P3PE2,5 6-10 BK
Series: QPD
1423987 Phoenix Contact Other Circular Connectors

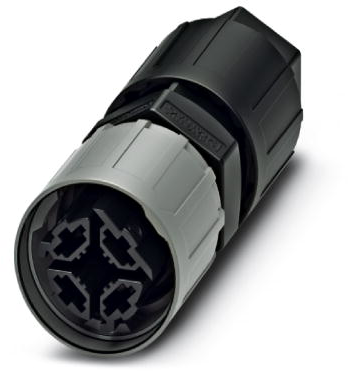

Image may differ
Unit Price (€ / pc.)
22.9789 € *
Available in 10 days: 723 pcs. - if ordered today
Total Price:
22.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
22.9789 €

Sensor-actuator connector, 1423987, Phoenix Contact

Connector, QUICKON connection, number of positions: 3+PE, 1 mm² - 2.5 mm², 690 V, 20 A, black, with QUICKON nut, external cable diameter: 6 mm - 10 mm.

Features

  • Fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
  • Easy maintenance - the connector enables fast device replacement and simplify startup thanks to pre-assembled cables
  • Overvoltage category: III
  • Pollution degree: 3
Technical specifications
Version socket
Cable cross-section 1.0-2.5 mm²
Pin number 3 pole + PE
Orientation straight
Contact connection IDC connection
Type of locking screw locking
Cable diameter 6 to 10 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
