1423976 | Phoenix Contact

Panel feed through, 3 pole + PE, IDC connection, screw locking, straight, 1423976

Order No.: 65P1504
EAN: 4055626365947
MPN:
1423976
QPD W3PE2,5 6-10 M25 FC BK
Series: QPD

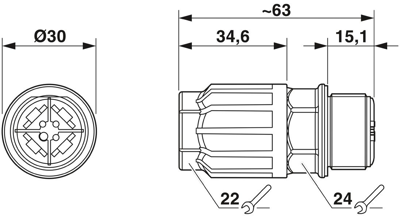

1423976 Phoenix Contact Other Circular Connectors Image 1

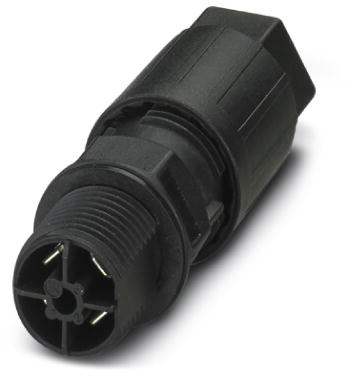

1423976 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.8155 € *
Available in 10 days: 47 pcs. - if ordered today
Total Price:
14.82 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8155 €
10 pcs.
13.0543 €
50 pcs.
12.1499 €
150 pcs.
11.6263 €
500 pcs.
11.0194 €
*incl. VAT plus shipping costs
Subject to prior sale

Panel feed-through, 1423976, Phoenix Contact

Panel feed-through, QUICKON connection, number of positions: 3+PE, 1-2.5 mm², 690 V, 20 A, black, with QUICKON nut, external cable diameter: 6-10 mm, assembly thread: M25, IDC connection, 2.5 mm²

Features

  • Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
  • Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Technical specifications
Version flat plug connection 4.8 x 0.8 mm
Cable cross-section 1.0-2.5 mm²
Pin number 3 pole + PE
Orientation straight
Contact connection IDC connection
Type of locking screw locking
Cable diameter 9 to 14 mm
Assembly front wall mounting M21
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
