1418658 | Phoenix Contact

Socket, 3 pole, SMD, screw locking, straight, 1418658

Order No.: 61P8527
EAN: 4055626163048
MPN:
1418658
SACC-CIP-M8FS-3P SMD-SP
Series: SACC

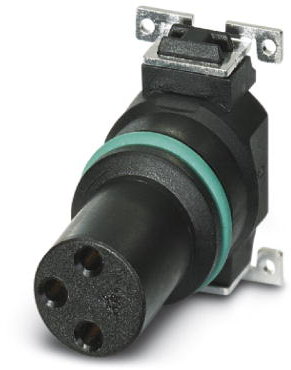

1418658 Phoenix Contact Other Circular Connectors Image 1

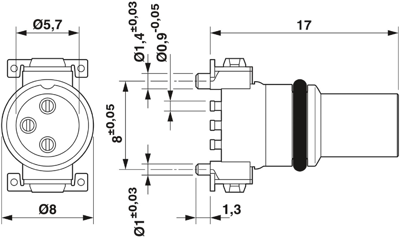

1418658 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.4101 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.41 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4101 €
10 pcs.
15.1011 €
50 pcs.
13.7326 €
100 pcs.
12.3641 €
*incl. VAT plus shipping costs
Subject to prior sale

Sample set, 1418658, Phoenix Contact

Pattern set, 3-pin, female, straight, M8, A-coded, PCB mount, SMD

Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly PCB mounting
Contact connection SMD
Pin number 3 pole
Version socket
Shell Material thermoplastic
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
