1414749 | Phoenix Contact

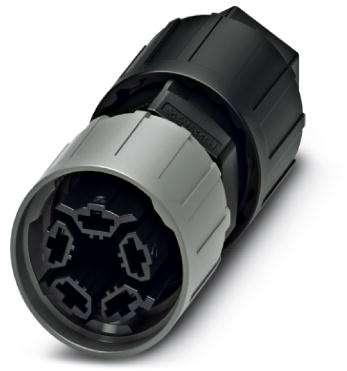

Connector, 4 pole + PE, IDC connection, screw locking, straight, 1414749

Order No.: 62P3562
EAN: 4055626033587
MPN:
1414749
QPD P 4PE1,5 5-10 BK
Series: QPD
1414749 Phoenix Contact Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
20.825 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
20.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
20.825 €

Sensor-actuator connector, 1414749, Phoenix Contact

Connector, QUICKON connection, number of positions: 4+PE, 0.5 mm² - 1.5 mm², 690 V, 17.5 A, black, with QUICKON nut, external cable diameter: 6 mm - 10 mm.

Features

  • Fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
  • Easy maintenance - the connector enables fast device replacement and simplify startup thanks to pre-assembled cables
  • Overvoltage category: III
  • Pollution degree: 3
Technical specifications
Version socket
Cable cross-section 0.5-1.5 mm²
Pin number 4 pole + PE
Orientation straight
Contact connection IDC connection
Type of locking screw locking
Cable diameter 5 to 10 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Customs tariff number 85366990
Country of origin PL
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
