1414692 | Phoenix Contact

Panel feed through, 2 pole + PE, IDC connection, screw locking, straight, 1414692

Order No.: 62P3613
EAN: 4055626031453
MPN:
1414692
QPD W 2PE1,5 M20 FC BK
Series: QPD

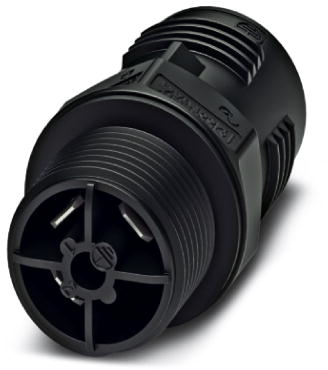

1414692 Phoenix Contact Other Circular Connectors Image 1

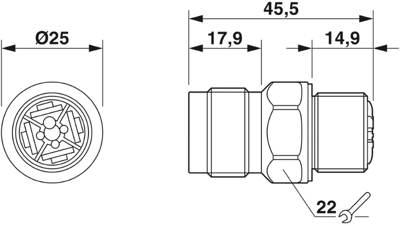

1414692 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.6263 € *
Available: 0 pcs.
Available in 10 days: 8 pcs.
Leadtime: 2 Weeks **
Total Price:
11.63 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.6263 €

Panel feed-through, 1414692, Phoenix Contact

Panel feed-through, QUICKON connection, number of positions: 2+PE, 0.5-1.5 mm², 690 V, 15 A, black, without QUICKON nut, assembly thread: M20, Spade connection (For slip-on sleeves according to DIN 46247-2), 1.5 mm²

Features

  • Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
  • Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Technical specifications
Assembly front wall mounting M21
Orientation straight
Additional parts equipped
Type of locking screw locking
Cable cross-section 0.5-1.5 mm²
contact surface silver-plated
Contact connection IDC connection
Version flat plug connection 4.8 x 0.8 mm
Pin number 2 pole + PE
Shell Material PA
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
