1414680 | Phoenix Contact
Panel feed through, 3 pole + PE, IDC connection, screw locking, straight, 1414680
Unit Price (€ / pc.)
18.7306 € *
Available: 0 pcs.
Available in 10 days: 10 pcs.
Leadtime: 2 Weeks **

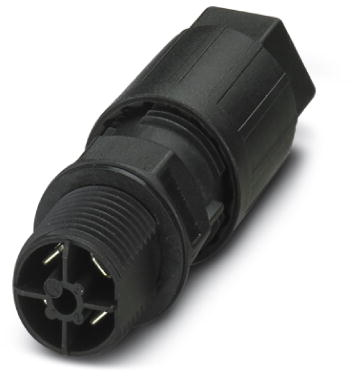

Panel feed-through, 1414680, Phoenix Contact
Panel feed-through, QUICKON connection, number of positions: 3+PE, 0.5-1.5 mm², 690 V, 15 A, black, with QUICKON nut, external cable diameter: 10-13 mm, assembly thread: M20, Spade connection (For slip-on sleeves according to DIN 46247-2), 1.5 mm²
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection
- Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Technical specifications
| Version | Flachsteckanschluss 4,8 x 0,8 mm | |
| Cable cross-section | 0,5-1,5 mm² | |
| Pin number | 3-polig + PE | |
| Orientation | gerade | |
| Contact connection | Schneidklemmanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 10 bis 13 mm | |
| Assembly | Vorderwandmontage M21 | |
| Additional parts | bestückt | |
| contact surface | versilbert | |
| Shell Material | PA |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
