1409221 | Phoenix Contact

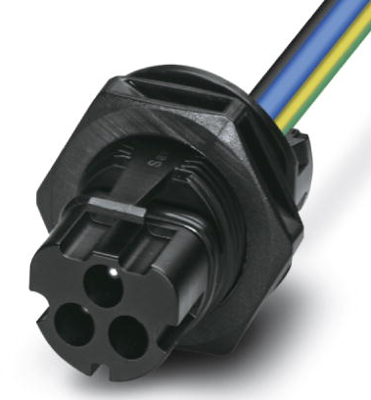

Plug, 3 pole, crimp connection, snap lock, straight, 1409221
Unit Price (€ / pc.)
17.4454 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
17.45 € *
Price list
Quantity
Price per unit*
1 pcs.
17.4454 €
10 pcs.
16.0531 €
50 pcs.
14.6013 €
100 pcs.
13.1376 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector, rear mounting, 1409221, Phoenix Contact
Round connector (device side), device connector rear panel, material housing: PPE, color: black, number of poles: 3, wire cross section: 6, rated voltage: 690 V AC, rated current: 35 A, connection type: crimp, contact type: male, cable length: 150
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Shell Material | PPE | |
| Cable cross-section | 6.0 mm² | |
| Version | plug | |
| Assembly | panel mounting | |
| contact surface | silver-plated | |
| Orientation | straight | |
| Type of locking | snap lock | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
