1409219 | Phoenix Contact

Plug, 3 pole, crimp connection, snap lock, straight, 1409219

Order No.: 62P3440
EAN: 4046356867726
MPN:
1409219
PRC 3-FT25-MC2,5-150
Series: PRC

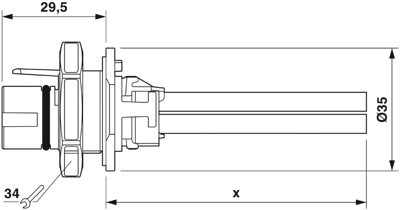

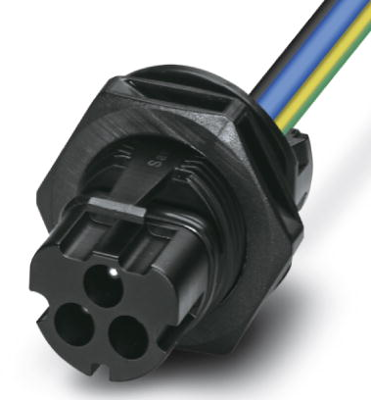

1409219 Phoenix Contact Other Circular Connectors Image 1
1409219 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.6961 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
15.70 € *
Price list
Quantity
Price per unit*
1 pcs.
15.6961 €
10 pcs.
14.4466 €
50 pcs.
13.1376 €
100 pcs.
11.8167 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector, rear mounting, 1409219, Phoenix Contact

Round connector (device side), device connector rear panel, material housing: PPE, color: black, number of poles: 3, wire cross section: 3, rated voltage: 690 V AC, rated current: 24 A, connection type: crimp, contact type: male, cable length: 150

Technical specifications
contact surface silver-plated
Orientation straight
Type of locking snap lock
Shell Material PPE
Cable cross-section 2.5 mm²
Pin number 3 pole
Assembly panel mounting
Version plug
Contact connection crimp connection
Logistics
Customs tariff number 85444290
Country of origin PL
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
