1409213 | Phoenix Contact

Plug, 5 pole, crimp connection, snap lock, straight, 1409213

Order No.: 62P3451
EAN: 4046356864329
MPN:
1409213
PRC 5-FT25-MC6-150
Series: PRC

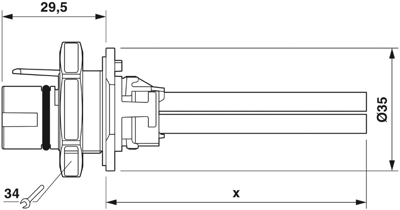

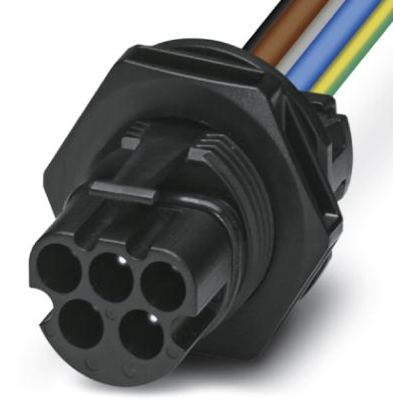

1409213 Phoenix Contact Other Circular Connectors Image 1
1409213 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.4204 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.42 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4204 €
10 pcs.
18.7901 €
50 pcs.
17.2907 €
100 pcs.
15.7318 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector, rear mounting, 1409213, Phoenix Contact

Round connector (device side), device connector rear panel, material housing: PPE, color: black, number of poles: 5, wire cross section: 6, rated voltage: 690 V AC, rated current: 35 A, connection type: crimp, contact type: male, cable length: 150

Technical specifications
Type of locking snap lock
contact surface silver-plated
Assembly panel mounting
Contact connection crimp connection
Cable cross-section 6.5 mm²
Pin number 5 pole
Version plug
Shell Material PPE
Orientation straight
Logistics
Country of origin PL
Customs tariff number 85444290
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
