1409212 | Phoenix Contact

Plug, 5 pole, crimp connection, snap lock, straight, 1409212

Order No.: 62P3450
EAN: 4046356864343
MPN:
1409212
PRC 5-FT25-MC4-150
Series: PRC

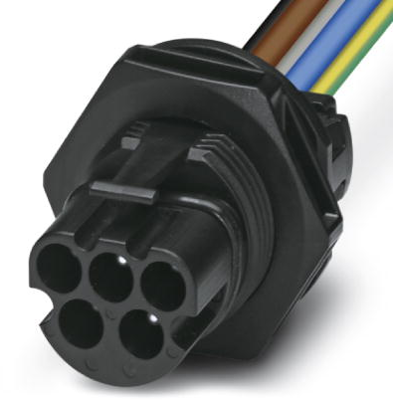

1409212 Phoenix Contact Other Circular Connectors Image 1

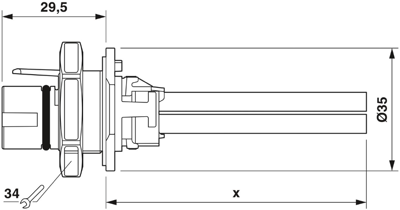

1409212 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.9206 € *
Available in 10 days: 17 pcs. - if ordered today
Total Price:
19.92 € *
Price list
Quantity
Price per unit*
1 pcs.
19.9206 €
10 pcs.
18.3260 €
50 pcs.
16.8504 €
100 pcs.
15.3510 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector, rear mounting, 1409212, Phoenix Contact

Round connector (device side), device connector rear panel, material housing: PPE, color: black, number of poles: 5, wire cross section: 4, rated voltage: 690 V AC, rated current: 32 A, connection type: crimp, contact type: male, cable length: 150

Technical specifications
Cable cross-section 4.5 mm²
Type of locking snap lock
contact surface silver-plated
Pin number 5 pole
Assembly panel mounting
Orientation straight
Version plug
Contact connection crimp connection
Shell Material PPE
Logistics
Country of origin PL
Customs tariff number 85444290
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
