1409206 | Phoenix Contact

Plug, 5 pole, crimp connection, snap lock, straight, 1409206

Order No.: 62P3448
EAN: 4046356864350
MPN:
1409206
PRC 5-FT25-MC
Series: PRC

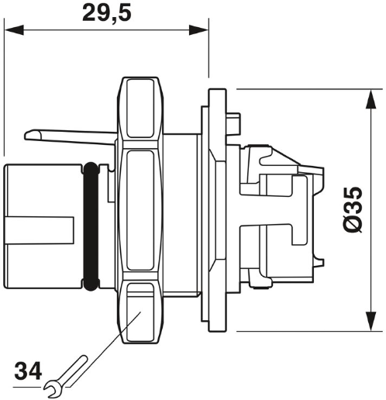

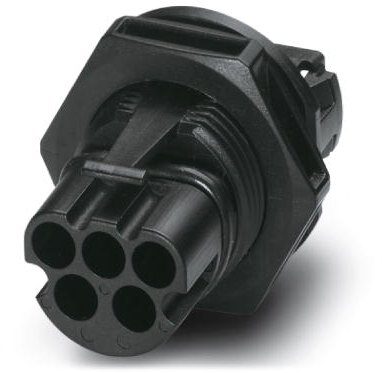

1409206 Phoenix Contact Other Circular Connectors Image 1
1409206 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.6505 € *
Available in 10 days: 13,645 pcs. - if ordered today
Total Price:
532.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
10.6505 €

Device connector, rear mounting, 1409206, Phoenix Contact

Round connector (device side), device connector rear panel, material housing: PPE, color: black, number of poles: 5, rated voltage: 690 V AC, rated current: 35 A, connection type: crimp, contact type: pin

Technical specifications
Filter Property Value
Version plug
Assembly panel mounting
Pin number 5 pole
Contact connection crimp connection
Type of locking snap lock
Orientation straight
Shell Material PPE
Logistics
Property Value
Country of origin PL
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
