1313299 | Phoenix Contact

Panel plug, 3 pole, screw connection, Duo-Unlock lock, straight, 1313299

Order No.: 64P1022
EAN: 4063151568542
MPN:
1313299
PRC 20/3-C1-FT25-MS2,5
Series: PRC
1313299 Phoenix Contact Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
9.2701 € *
Available in 10 days: 189 pcs. - if ordered today
Total Price:
9.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.2701 €

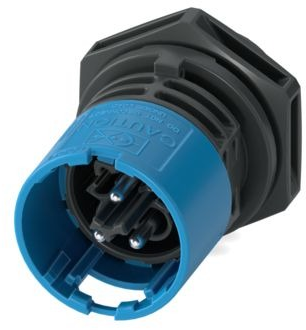

Circular connector, 1313299, Phoenix Contact

Device connector front mounting, Range of articles: PRC 20, Color: black, Number of positions: 3, min. conductor cross section: 0.5 mm², max. conductor cross section: 2.5 mm², Rated voltage: 400 V, Rated current: 25 A, Connection method: screw connection, Contact connection type: pin, Setting option for release: 1. with a tool or 2. by hand, Scope: AC.

Features

  • More space on the device front with current transmission up to 20 A in a minimum amount of space
  • Duo-Unlock technology for greater flexibility during installation and maintenance
  • Reliable use under extreme ambient conditions with high degrees of protection and impact resistance
  • Mechanical and color coding for quick and error-free startup
Technical specifications
Type of locking Duo-Unlock lock
Assembly front mounting
Contact connection screw connection
Cable cross-section 0.5-2.5 mm²
Pin number 3 pole
Version plug
Shell Material EPDM/PPE/CuZn
Orientation straight
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
