1313280 | Phoenix Contact

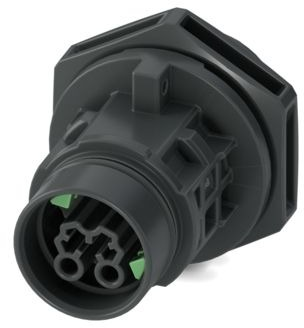

Panel socket, 2 pole, screw connection, Duo-Unlock lock, straight, 1313280

Order No.: 64P1021
EAN: 4063151563394
MPN:
1313280
PRC 20/2-C3-FT25-FS2,5
Series: PRC
1313280 Phoenix Contact Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
13.4232 € *
Available: 2 pcs.
Total Price:
13.42 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4232 €
10 pcs.
12.0785 €
50 pcs.
10.8766 €
100 pcs.
9.7818 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, 1313280, Phoenix Contact

Device connector front mounting, Range of articles: PRC 20, Color: black, Number of positions: 2, min. conductor cross section: 0.5 mm², max. conductor cross section: 2.5 mm², Rated voltage: 400 V, Rated current: 20 A, Connection method: screw connection, Contact connection type: socket, Setting option for release: 1. with a tool or 2. by hand, Scope: BUS.

Features

  • More space on the device front with current transmission up to 20 A in a minimum amount of space
  • Duo-Unlock technology for greater flexibility during installation and maintenance
  • Reliable use under extreme ambient conditions with high degrees of protection and impact resistance
  • Mechanical and color coding for quick and error-free startup
Technical specifications
Contact connection screw connection
Pin number 2 pole
Orientation straight
Version socket
Type of locking Duo-Unlock lock
Cable cross-section 0.5-2.5 mm²
Assembly front mounting
Logistics
Customs tariff number 85366990
Country of origin PL
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
