1313274 | Phoenix Contact

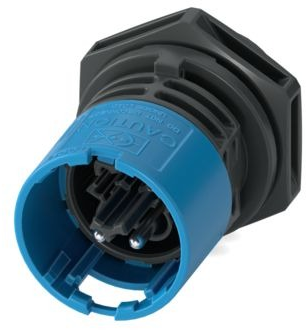

Panel plug, 2 pole, screw connection, Duo-Unlock lock, straight, 1313274

Order No.: 64P1014
EAN: 4063151569112
MPN:
1313274
PRC 20/2-C1-FT25-MS2,5
Series: PRC
1313274 Phoenix Contact Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
10.4363 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
10.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.4363 €

Circular connector, 1313274, Phoenix Contact

Device connector front mounting, Range of articles: PRC 20, Color: black, Number of positions: 2, min. conductor cross section: 0.5 mm², max. conductor cross section: 2.5 mm², Rated voltage: 400 V, Rated current: 20 A, Connection method: screw connection, Contact connection type: pin, Setting option for release: 1. with a tool or 2. by hand, Scope: AC.

Features

  • More space on the device front with current transmission up to 20 A in a minimum amount of space
  • Duo-Unlock technology for greater flexibility during installation and maintenance
  • Reliable use under extreme ambient conditions with high degrees of protection and impact resistance
  • Mechanical and color coding for quick and error-free startup
Technical specifications
Pin number 2 pole
Type of locking Duo-Unlock lock
Version plug
Cable cross-section 0.5-2.5 mm²
Contact connection screw connection
Assembly front mounting
Orientation straight
Shell Material PPE
Logistics
Customs tariff number 85366990
Country of origin PL
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
