1308633 | Phoenix Contact

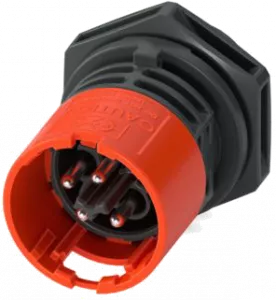

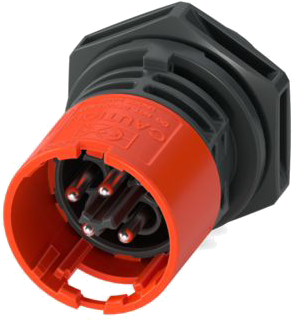

Panel plug, 4 pole, screw connection, Duo-Unlock lock, straight, 1308633
Unit Price (€ / pc.)
13.9111 € *
Standard delivery time from the manufacturer is: 5 Weeks
Circular connector, 1308633, Phoenix Contact
Device connector front mounting, Range of articles: PRC 20, Color: black, Number of positions: 4, min. conductor cross section: 0.5 mm², max. conductor cross section: 2.5 mm², Rated voltage: 400 V, Rated current: 20 A, Connection method: screw connection, Contact connection type: pin, Setting option for release: 1. with a tool or 2. by hand, Scope: AC.
Features
- More space on the device front with current transmission up to 20 A in a minimum amount of space
- Duo-Unlock technology for greater flexibility during installation and maintenance
- Reliable use under extreme ambient conditions with high degrees of protection and impact resistance
- Mechanical and color coding for quick and error-free startup
Technical specifications
| Pin number | 4 pole | |
| Type of locking | Duo-Unlock lock | |
| Version | plug | |
| Cable cross-section | 0.5-2.5 mm² | |
| Contact connection | screw connection | |
| Assembly | front mounting | |
| Orientation | straight | |
| Shell Material | PPE/CuZn |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
