1243937 | Phoenix Contact

Plug, 12 pole, crimp connection, standard/SPEEDCON locking system, straight, 1243937

Order No.: 64P5072
EAN: 4063151406417
MPN:
1243937
Series: CA
1243937 Phoenix Contact Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
20.7893 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
20.79 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7893 €
10 pcs.
19.4922 €
25 pcs.
18.3379 €
50 pcs.
17.3264 €
*incl. VAT plus shipping costs
Subject to prior sale

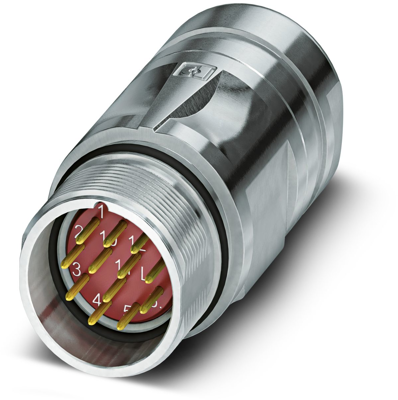

Coupler connector, 1243937, Phoenix Contact

M23, Coupler connector, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 12, Direction of rotation: Counter direction, contact connection type: Pin, Crimp connection, cable diameter range: 10 mm ... 14.5 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Safe use in the field, thanks to high degree of protection
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • Crimping connection: vibration- and temperature-resistant assembly
Technical specifications
Pin number 12 pole
Type of locking standard/SPEEDCON locking system
Shell Material copper zinc alloy
Orientation straight
Contact connection crimp connection
Version plug
Cable diameter 10 to 14.5 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
