1039565 | Phoenix Contact

Installation connector, 5 pole, IDC connection, straight, 1039565

Order No.: 64P2585
EAN: 4055626597119
MPN:
1039565
QPD P 4PE6,0 12-20 TL BK
Series: QPD

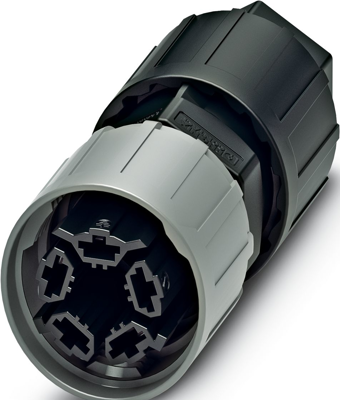

1039565 Phoenix Contact Other Circular Connectors Image 1
1039565 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.0844 € *
Available in 5 Days: 306 pcs. - if ordered today
Total Price:
27.08 € *
Price list
Quantity
Price per unit*
1 pcs.
27.0844 €
10 pcs.
25.1923 €
50 pcs.
23.1693 €
100 pcs.
21.0868 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector, 1039565, Phoenix Contact

Connector, product family: QPD, connection method: IDC connection, number of positions: 4+PE, 2.5 mm²-6 mm², 690 V, 40 A, PA, black, with QUICKON nut, external cable diameter: 12 mm-20 mm.

Features

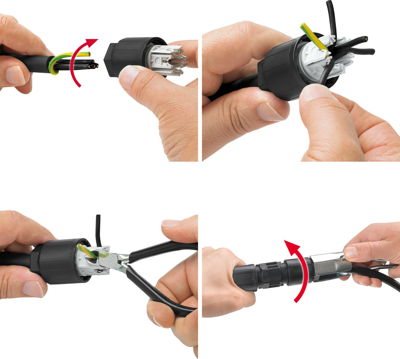

  • Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
  • Easy maintenance - the connectors enable fast device replacement and preassembled cables simplify startup
Technical specifications
Filter Property Value
Pin number 5 pole
Shell Material PA
Cable cross-section 2.5-6.0 mm²
Version installation connector
Assembly cable assembly
contact surface silver-plated
Cable diameter 12 to 20 mm
Orientation straight
Contact connection IDC connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
