1039563 | Phoenix Contact

Installation connector, 5 pole, IDC connection, straight, 1039563

Order No.: 64P2583
EAN: 4055626596297
MPN:
1039563
QPD P 4PE2,5 6-11 TL BK
Series: QPD

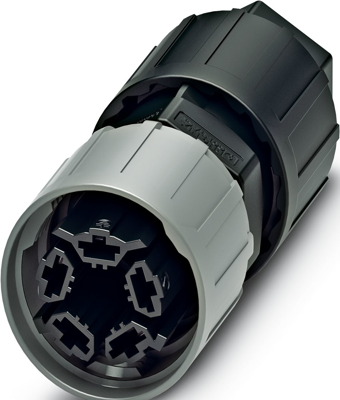

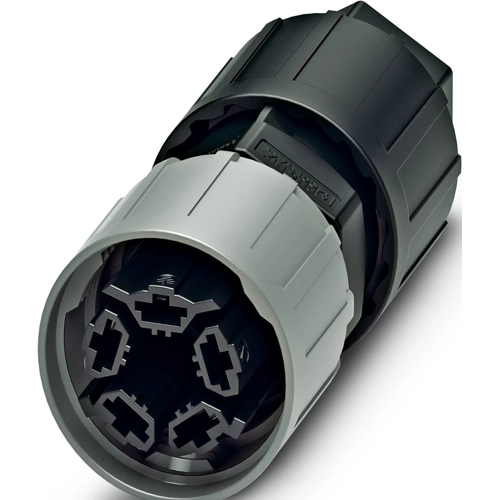

1039563 Phoenix Contact Other Circular Connectors Image 1
1039563 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.6596 € *
Available in 5 Days: 49 pcs. - if ordered today
Total Price:
17.66 € *
Price list
Quantity
Price per unit*
1 pcs.
17.6596 €
10 pcs.
16.4220 €
50 pcs.
15.1130 €
100 pcs.
13.7445 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector, 1039563, Phoenix Contact

Connector, product family: QPD, connection method: IDC connection, number of positions: 4+PE, 1 mm²-2.5 mm², 690 V, 20 A, PA, black, with QUICKON nut, external cable diameter: 6 mm-11 mm.

Features

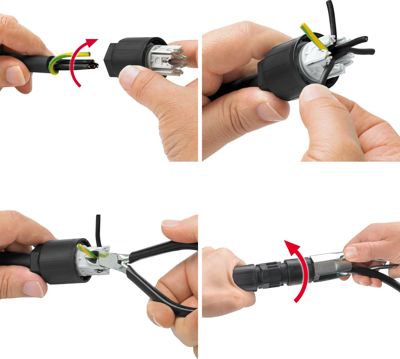

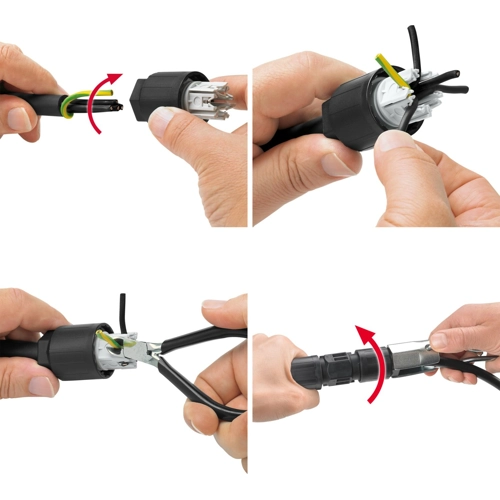

  • Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
  • Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
  • Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
  • Easy maintenance - the connectors enable fast device replacement and preassembled cables simplify startup
Technical specifications
Filter Property Value
Contact connection IDC connection
Shell Material PA
Version installation connector
Assembly cable assembly
contact surface silver-plated
Orientation straight
Cable diameter 6 to 11 mm
Cable cross-section 1.0-2.5 mm²
Pin number 5 pole
Logistics
Property Value
Customs tariff number 85366990
Country of origin PL
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
