1017635 | Phoenix Contact

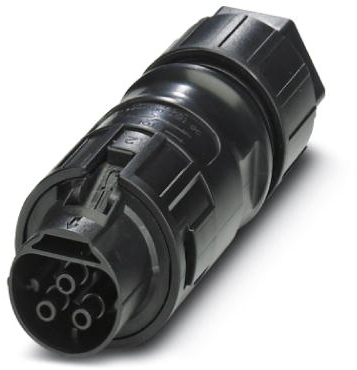

Socket, 3 pole, screw connection, snap-in, straight, 1017635
Unit Price (€ / pc.)
26.5846 € *
Available: 0 pcs.
Available in 10 days: 592 pcs.
Leadtime: 2 Weeks **
Coupler connector, 1017635, Phoenix Contact
Installation connector, Coupler connector, type: Release with tool or by hand, housing material: PPE, color: black, number of positions: 3, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Type of contact: Socket, min. cable diameter: 8 mm, max. cable diameter: 21 mm.
Features
- Up to 75% smaller in size than industrial connectors with the same rating
- Locking mechanism can be unlocked manually or using a tool
- Ideal for indoor and outdoor use due to weatherproof materials
- Pollution degree: 2
- Contact material: Cu alloy
Technical specifications
| Version | Buchse | |
| Cable cross-section | 1,5-6 mm² | |
| Pin number | 3-polig | |
| Orientation | gerade | |
| Contact connection | Schraubanschluss | |
| Type of locking | Snap-in | |
| Cable diameter | 8 bis 21 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | versilbert | |
| Shell Material | PPE |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
