1014530 | Phoenix Contact

Plug, 5 pole, screw connection, snap-in, straight, 1014530

Order No.: 65P0171
EAN: 4055626494524
MPN:
1014530
PRC 5-FC-MS6 8-21
Series: PRC
1014530 Phoenix Contact Other Circular Connectors

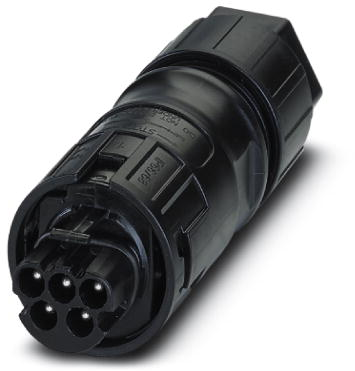

Image may differ
Unit Price (€ / pc.)
36.0451 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
36.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
36.0451 €

Sensor-actuator connector, 1014530, Phoenix Contact

Installation connector, housing material: PPE, color: black, number of positions: 5, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Type of contact: Pin, min. cable diameter: 8 mm, max. cable diameter: 21 mm. Ensures touch protection.

Features

  • Up to 75% smaller in size than industrial connectors with the same rating
  • Locking mechanism can be unlocked manually or using a tool
  • Ideal for indoor and outdoor use due to weatherproof materials
  • Pollution degree: 2
  • Contact material: Cu alloy
Technical specifications
Version plug
Cable cross-section 1.5-6 mm²
Pin number 5 pole
Orientation straight
Contact connection screw connection
Type of locking snap-in
Cable diameter 8 to 21 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PPE
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
