2710314 | Phoenix Contact
Setpoint generator MCR-SL-D-SPA-UI
Unit Price (€ / pc.)
360.2249 € *
Available in 5 Days: 128 pcs. - if ordered today

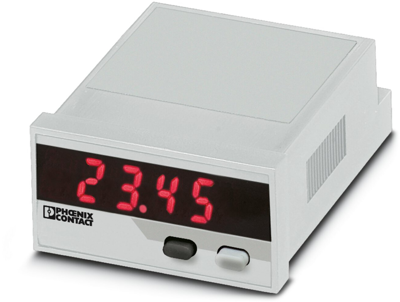

Setpoint adjuster, 2710314, Phoenix Contact
Digital setpoint encoders with manual and automatic ramp for defining current and voltage signals, 4-pos. display.
Features
- Automatic setpoint definition with hold function and 20 interpolation points
- Manual setpoint definition via direct input
- Flexible, adjustable signal ranges of 0 to 12 V or 0 to 24 mA
- Data backup in the event of power failure
- Manual setpoint definition with incremental setting
- Display value parameterization
- Electrical isolation between output and supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency measurement | No | |
| Voltage | 0-12 V AC/DC | |
| Control Output | No | |
| Height of cut-out | 24 mm | |
| Max. current | 24 mA | |
| Width of cut-out | 48 mm | |
| Assembly | built-in mounting | |
| Degree of protection (IP) | IP65 | |
| Installation depth | 68 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90291000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
