2981017 | Phoenix Contact
Safety relays, 2 Form A (N/O), 24 V (DC), 6 A, 250 V (DC), 250 V (AC), 2981017
Unit Price (€ / pc.)
198.4444 € *
Available in 5 Days: 392 pcs. - if ordered today

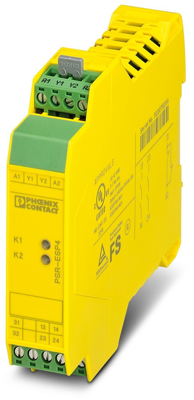

Safety relay, 2981017, Phoenix Contact
Safety relay for SIL 3 high and low-demand applications, also approved in accordance with EN 50156, Germanischer Lloyd, and EN ISO 13849, Emergency stop and safety door monitoring, 1-channel, 2 enabling current paths, 1 signal contact, Width: 22.5 mm, Pluggable push-in terminal block, Safe isolation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 24 V | |
| Switching Voltage (DC) | 250 V | |
| switching current | 6 A | |
| Contact type | 2 Form A (N/O) | |
| Breaking capacity | 1500 VA | |
| Switching Voltage (AC) | 250 V | |
| Connection | tension clamp connection | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
