2963954 | Phoenix Contact

Safety relays, 4 Form A (N/O), 24 V (DC), 22 Ω, 6 A, 250 V (DC), 250 V (AC), 2963954

Order No.: 64P2798
EAN: 4017918904821
MPN:
2963954
PSR-SPP- 24UC/ESA2/4X1/1X2/B
Series: PSR
2963954 Phoenix Contact Monitoring Relays
Image may differ
Unit Price (€ / pc.)
216.1635 € *
Available in 5 Days: 254 pcs. - if ordered today
Total Price:
216.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
216.1635 €

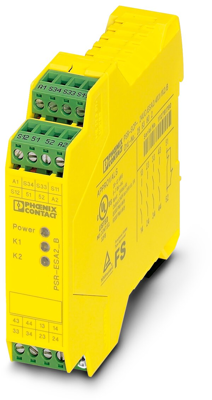

Safety relay, 2963954, Phoenix Contact

Safety relay for emergency stop and safety door up to SIL 1, SIL CL 1, Cat. 1, PL c, Depending on the application up to SIL 3, SIL CL 3, Cat. 4, PL e, Single-channel operation, 4 enabling current paths, US = 24 V AC/DC, Pluggable push-in terminal block.

Technical specifications
Filter Property Value
switching current 6 A
Breaking capacity 1500 VA
Coil resistance 22 Ω
Coil voltage (DC) 24 V
Switching Voltage (AC) 250 V
Connection tension clamp connection
Contact type 4 Form A (N/O)
Contact material AgSnO2
Switching Voltage (DC) 250 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85371098
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
