2904955 | Phoenix Contact
Safety relays, 1 Form A (N/O), 24 V (DC), 150 Ω, 6 A, 250 V (DC), 250 V (AC), 2904955
Unit Price (€ / pc.)
145.5965 € *
Available in 5 Days: 64 pcs. - if ordered today

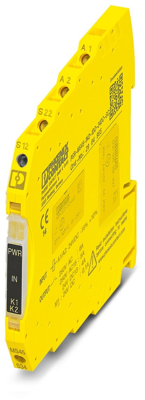

Safety relay, 2904955, Phoenix Contact
Safety relay for emergency stop and safety doors up to SIL 3, Cat. 4, PL e, 1 or 2-channel operation, manual, monitored start, 1 enabling current path, US = 24 VDC, Fixed screw terminal block.
Features
- Low housing width of just 6.8 mm
- Manual and monitored activation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 150 Ω | |
| Switching Voltage (DC) | 250 V | |
| Contact type | 1 Form A (N/O) | |
| Connection | screw connection | |
| switching current | 6 A | |
| Contact material | AgSnO2 | |
| Switching Voltage (AC) | 250 V | |
| Breaking capacity | 1500 VA | |
| Coil voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
