2904950 | Phoenix Contact

Safety relays, 1 Form A (N/O), 24 V (DC), 150 Ω, 6 A, 250 V (DC), 250 V (AC), 2904950

Order No.: 64P2695
EAN: 4046356904988
MPN:
2904950
PSR-MS20-1NO-1DO-24DC-SC
Series: PSR
2904950 Phoenix Contact Monitoring Relays
Image may differ
Unit Price (€ / pc.)
138.9444 € *
Available in 10 days: 307 pcs. - if ordered today
Total Price:
138.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
138.9444 €

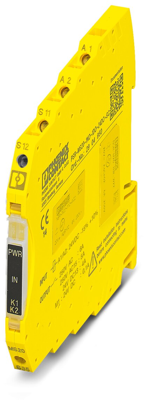

Safety relay, 2904950, Phoenix Contact

Safety relay for emergency stop and safety doors up to SIL 1, Cat. 1, PL c, Depending on the application up to SIL 3, Cat. 4, PL e, 1-channel operation, Automatic start, 1 enabling current path, US = 24 VDC, Fixed screw terminal block.

Features

  • Low housing width of just 6.8 mm
  • Automatic activation
Technical specifications
Filter Property Value
Contact material AgSnO2
switching current 6 A
Connection screw connection
Switching Voltage (AC) 250 V
Switching Voltage (DC) 250 V
Coil voltage (DC) 24 V
Coil resistance 150 Ω
Breaking capacity 1500 VA
Contact type 1 Form A (N/O)
Logistics
Property Value
Country of origin DE
Customs tariff number 85371098
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
Substance description Lead
